Thông số kỹ thuật
Thông số kỹ thuật

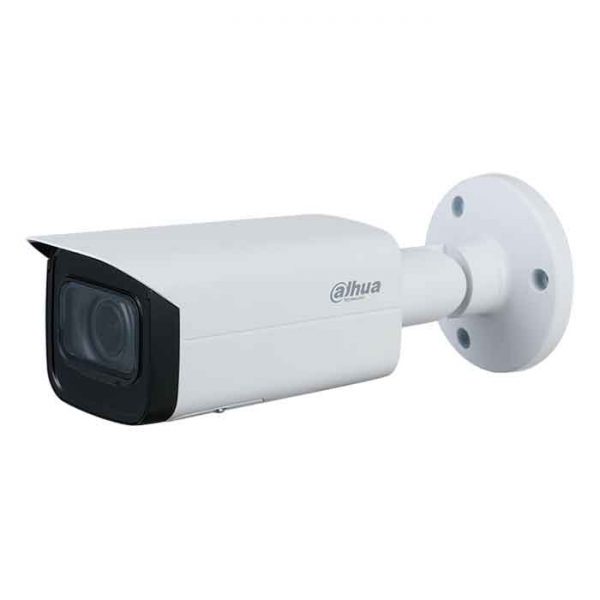

| Model | IPC-HFW3241TP-ZS |
| Camera | |
| Image Sensor | 1/2.8 inch 2 Megapixel progressive CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3s – 1/100000s |
| Minimum Illumination | 0.002 Lux @F1.5 |
| IR Distance | 60m |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 4 |
| Pan/Tilt Range | Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max Aperture | F1.5 |
| Field of View | Horizonal: 109°–28° Horizonal: 109°–28° Vertical: 57°–16° Diagonal: 130°–33° |
| Iris Type | Fixed aperture |
| Intelligent | |
| Perimeter Protection | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Streaming Capability | 3 streams |
| Day/Night | Auto (ICR)/ Color/ B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| White Balance | Auto/ natural/ street lamp/ outdoor/ manual/ regional custom |
| Motion Detetion | Off / On (4 Zone, Rectangle) |
| Region of Interest | Yes (4 areas) |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Interoperability | ONVIF (Profile S/Profile G); CGI; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Edge Storage | FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Management Software | Smart PSS; DSS; DMSS |
| Others | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 9.4W |
| Protection Grade | IP67 |
| Casing | Metal |
| Dimensions | 81 mm × Φ109.9 mm |
| Weight | 378 g |
