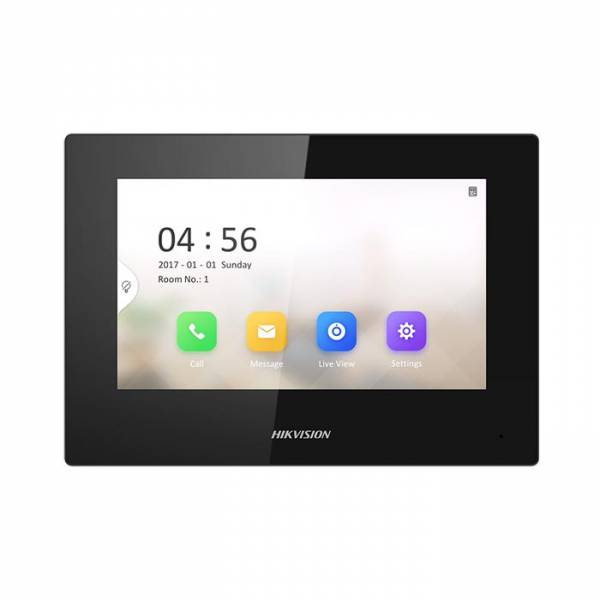

| Model | DS-KH6320-LE1 |
| System Parameters | |
| Operating System | Embedded RTOS operation system |
| ROM | 16 MB |
| RAM | 64 MB |
| CPU | Embedded processor |
| Display Parameters | |
| Screen Size | 7-inch |
| Operation Method | Capactive touch |
| Type | TFT LCD |
| Resolution | 1024 × 600 |
| Audio Parameters | |
| Audio Compression Standard | G.711 U |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| Event Capacity | 200 |
| Notice Capacity | 16 |
| Linked Indoor Station Capacity | 5 |
| Linked Indoor Extensions Capacity | 8 |
| Network Parameters | |
| Communication Protocol | TCP/IP, RTSP |
| Wired Network | Support |
| Device Interfaces | |
| Alarm Input | 8 |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive |
| General | |
| Installation | Flush mounting, surface mounting |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimensions | 200 mm × 140 mm × 15.1 mm |
| Power Supply | IEEE802.3af, standard PoE 12 VDC, 1 A |
| Application Environment | Indoor |
| Power Consumption | ≤ 6 W |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Czech, Ukrainian, Serbian |
