| Model |

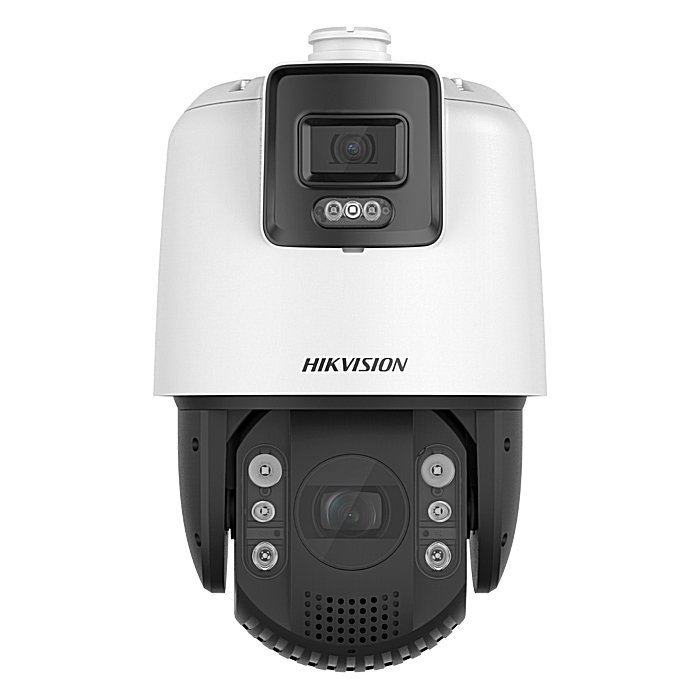

DS-2SE7C124IW-AE(32x/4)(S5) |
| Camera |
| Image Sensor |
[panoramic channel]: 1/2.8' Progressive Scan CMOS; [PTZ channel]: 1/2.8' progressive scan CMOS |
| Min. Illumination |
[PTZ channel]: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON); [panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Slow Shutter |
Yes |
| Focus |
Semi-auto; manual; auto |
| Day & Night |
ICR |
| Day/Night Switch |
Day, night, auto, scheduled-switch |
| BLC, HLC, 3D DNR, Defog, EIS |
Yes |
| WDR |
120 dB WDR |
| Regional Exposure |
Yes |
| Regional Focus |
Yes |
| Image Settings |
Saturation, Brightness; contrast; sharpness |
| White Balance |
MWB; indoor; outdoor; fluorescent lamp; sodium, lamp; ATW; auto; Locked WB; Locked WB |
| Digital Zoom |
32x |
| Optical Zoom |
25x |
| Privacy Mask |
Mosaic mask; mask color configurable; polygon region; [panoramic channel] 8 masks, [PTZ channel] 24 masks |
| SNR |
＞52dB |
| Lens |
| Focal Length |
[panoramic channel]: 4 mm; [PTZ channel]: 4.8 to 153 mm, 32 × |
| Zoom Speed |
Approx. 4.2 s |
| FOV |
[panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°; |
| [PTZ channel]: |
| Horizontal field of view: 58.4° to 2.14° (wide-tele), |
| Vertical field of view: 33.8° to 1.2° (wide-tele), |
| Diagonal field of view: 65.6° to 2.46° (wide-tele) |
| Aperture |
[panoramic channel]: F1.6; [PTZ channel]: F1.2 |
| PTZ |
| Movement Range (Pan) |
360° |
| Movement Range (Tilt) |
-15° to 90°(auto flip) |
| Pan Speed |
Pan speed: configurable from 0.1° to 160°/s; preset speed: 80°/s |
| Tilt Speed |
Tilt speed: configurable from 0.1° to 120°/s, preset speed 80°/s |
| Proportional Zoom |
Yes |
| Presets |
300 |
| Patrol Scan |
8 patrols, up to 32 presets for each patrol |
| Pattern Scan |
4 pattern scans |
| Power-Off Memory |
Yes |
| Park Action |
Preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan |
| 3D Positioning, PTZ Status Display, Preset Freezing |
Yes |
| Scheduled Task |
Preset;pattern scan;patrol scan;auto scan;panorama scan;random scan;tilt scan;frame scan;dome reboot;dome adjust;aux output |
| Video |
| Max. Resolution |
2560 × 1440 |
| Stream Type |
Main stream;sub-stream; third stream |
| Video Compression |
H.265; H.264; MJPEG |
| Video Bit Rate |
32kbps to 16384kbps |
| SVC |
| ROI |
Dynamic face tracking;;main stream, sub-stream and third stream respectively support eight fixed areas;fixed region |
| Audio |
| Audio Compression |
G.711alaw; G.711ulaw; G.722.1; G.726; MP2L2; PCM |
| Audio Bit Rate |
MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps |
| Audio Sampling Rate |
MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering |
Yes |
| Smart Features |
| Face Capture |
No |
| Basic Event |
Motion detection;alarm input;alarm output;video tampering alarm;exception |
| Smart Event |
Intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection |
| Smart Record |
ANR;Dual-VCA |
| Alarm Linkage |
Smart tracking; preset; patrol scan; pattern scan; memory card video recording; alarm output; sending email; notify surveillance center; upload to FTP |
| Network |
| Network Storage |
NAS (NFS, SMB/ CIFS); ANR |
| Protocols |
IPv4/IPv6; HTTP; HTTPS; 802.1x;Qos; FTP;SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTCP; RTP; TCP/IP; UDP; IGMP; ICMP; DHCP; PPPoE; Bonjour |
| API |
ISAPI; Hikvision SDK;ONVIF (Profile S, Profile G, Profile T); ISUP; Hik-Connect |
| Simultaneous Live View |
20 |
| User/Host |
32 |
| Security Measures |
Authenticated username and password; MAC address binding; HTTPS encryption;802.1X authenticated access;IP address filter |
| Client |
iVMS-4200;Hik-Connect |
| Interface |
| Communication Interface |
1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at);RJ45, self-adaptive 10M/100M Ethernet port |
| On-Board Storage |
Support microSD/microSDHC/microSDXC cards;up to 256 GB |
| Alarm Input |
2 alarm input |
| Alarm Output |
1 đầu ra cảnh báo |
| Đầu vào âm thanh |
1 đầu vào âm thanh |
| Đầu ra âm thanh |
1 đầu ra âm thanh, mức đường truyền, trở kháng: 600 Ω |
| Bổ sung ánh sáng |
| Khoảng cách IR |
150 m |
| Chung |
| Quyền lực |
24VDC, Hi-PoE (802.3at) |
| Mức tiêu thụ điện năng và dòng điện |
Tối đa 60 W, bao gồm tối đa 3,7 W cho lò sưởi và tối đa. 16 W cho ánh sáng bổ sung |
| Demist |
Demist bằng cách làm nóng kính |
| Cài lại |
Đúng |
| Vật chất |
ADC 12, PC, PC + 10% GF |
| Kích thước |
Ø 220,0 mm × 373,3 mm (Ø 8,7 '× 14,7') |
| Trọng lượng |
Khoảng 6 kg (13,23 lb.) |
| Phê duyệt |
| Sự bảo vệ |
IP66; IK10 (không bao gồm cửa sổ kính), Bảo vệ chống sét 6000V, Bảo vệ chống sét lan truyền và Bảo vệ điện áp quá độ |
