Thông số kỹ thuật

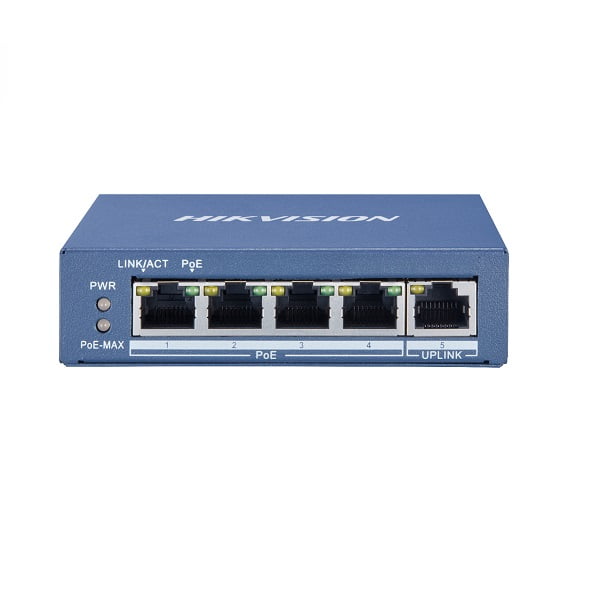

Thống Số Kỹ Thuật Switch PoE GIGABIT Hi PoE 4 Cổng 1000Mpbs, 1 Cổng Uplink 1000Mpbs, Layer 2 DS-3E0505HP-E
| Model | DS-3E0505HP-E |
| Network parameters | |
| Port number | 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port and 1 × gigabit RJ45 port |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode |
| Ports for long-distance transmission |
Ports 3 and 4 |
| MAC address table | 2 K |
| Switching capacity | 10 Gbps |
| Packet forwarding rate | 7.44 Mpps |
| Internal cache | 1 Mbits |
| PoE power supply | |
| PoE standard | Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously |
| PoE port | Ports 1 to 4 |
| Hi-PoE port | Port 1 |
| Max. port power | Port 1: 60 W Ports 2 to 4: 30 W |
| PoE power budget | 60 W |
| Dialing function | |
| Long range | Ports 3 and 4: up to 300 m; and the speed rate of the port is 10 Mbps. |
| Port isolation | Ports 1 to 4: port isolation mode to improve network security. |
| PoE watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond |
| General | |
| Shell | Metal material, fan-free design |
| Power supply | 48VDC, 1.35 A |
| Power consumption in idle | < 5W |
| Max. power consumption | 65 W |
| Power source | 65 W |
| Dimension | 121 × 88.1 × 27.6 mm |
| Weight | 0.27 kg |
